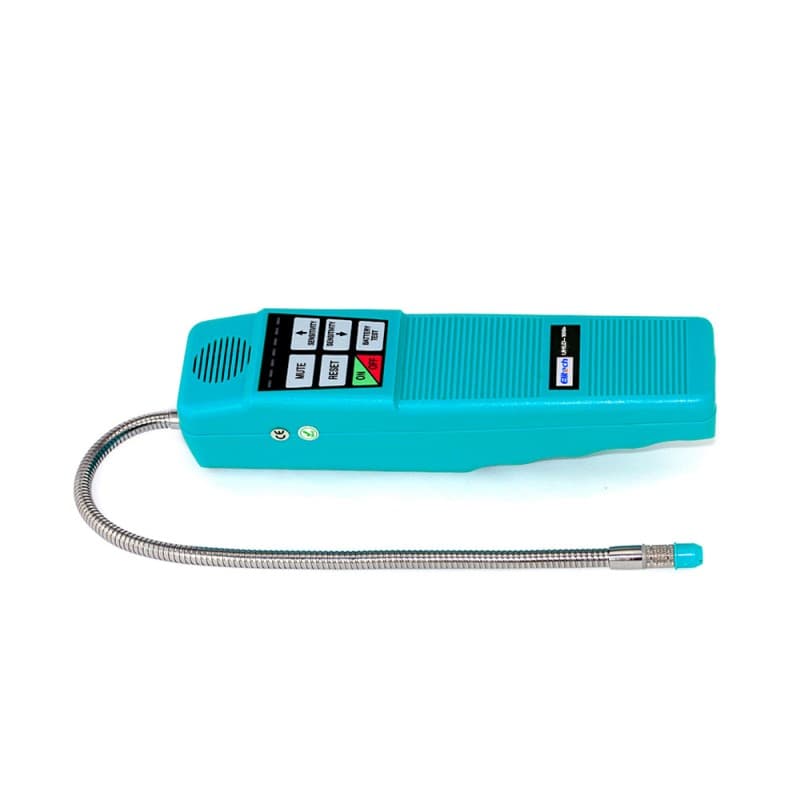

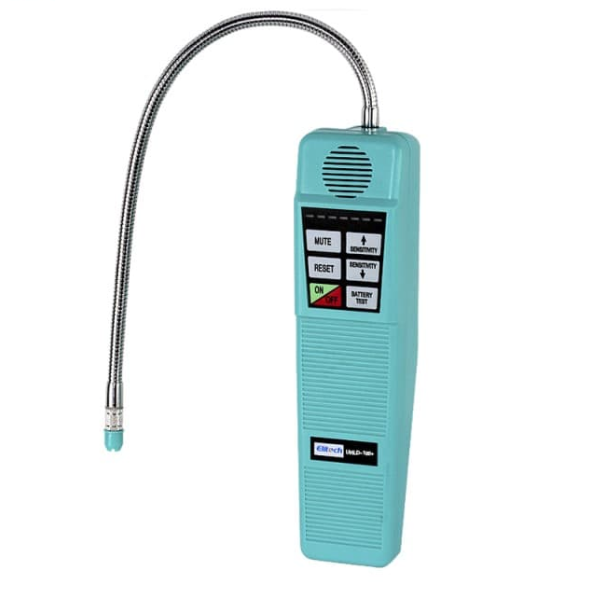

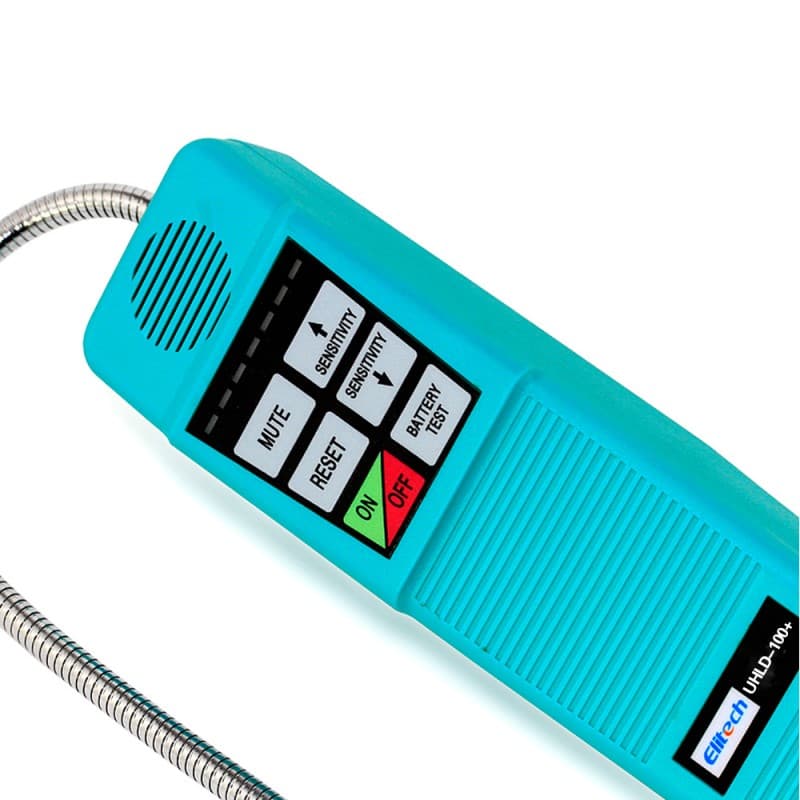

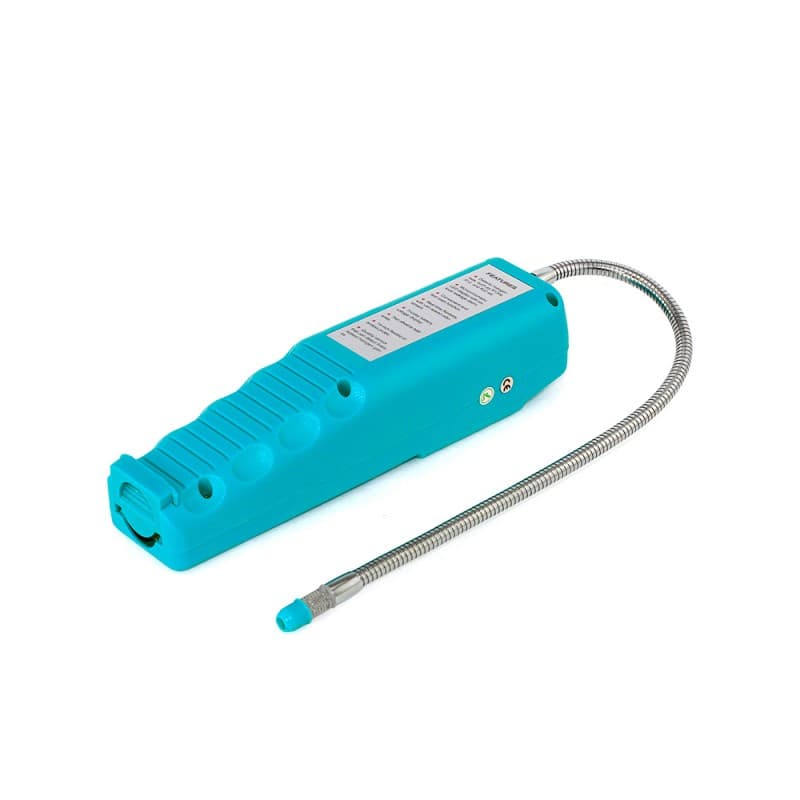

HLD-100+ Refrigerant Gas Leakage Detector
The HLD-100+ Refrigerant Leak Detector is an essential tool for HVAC technicians and maintenance professionals, offering fast and precise detection of refrigerant leaks. It is compatible with all halogenated refrigerants including CFCs, HCFCs, HFCs, and blends, making it highly versatile across various applications. The detector comes equipped with a high-sensitivity sensor, spare sensor tip, and a user manual—everything needed for immediate and reliable operation.
Key Features
High Sensitivity
Detects leaks as small as 3g/year, ensuring even the smallest refrigerant leaks are found quickly.Compatible with All Common Refrigerants
Detects R11, R22, R134A, R404A, R410A, and all halogenated refrigerants, including CFCs, HCFCs, HFCs, blends, and others.Quick Response Time
Reacts in under 5 seconds for fast, on-site leak identification.Adjustable Sensitivity
Offers 7 sensitivity levels to easily adapt to various environments and leak conditions.Flexible Probe
Features a 35cm bendable probe to access hard-to-reach areas.Battery Power Indicator
Dual-Color LED:Green: Sufficient power
Orange: Low battery warning
Visual and Audible Alarms
Alerts you to leaks with both LED flashing and buzzer sound for immediate awareness.
Technical Specifications
Parameter | Details |
|---|---|
Sensor Type | Corona sensor |
Power Supply | 2 × C-size batteries |
Maximum Sensitivity | 5g/year (0.11oz/year) |
Working Temperature | 0°C to 52°C |
Sensitivity Levels | 7 levels |
Sensor Lifetime | ≥ 24 hours |
Working Mode | Continuous (no limit) |
Response Time | < 5 seconds |
Reset Time | < 3 seconds |
Warm-Up Time | Approx. 6 seconds |
Unit Size | 229 × 65 × 65 mm |
Probe Length | 35.5 cm |
Refrigerant Compatibility
Type | Examples |
|---|---|
CFCs | R11, R12, R13, R502, R503 |
HCFCs | R22, R123, R124, R141b, R142b, R402A, R402B, R408A, R409A |
HFCs | R134a, R410A, R407C, R417A, R404A, R507, R23, R508A, R508B, R152a, R32 |
Blends | AZ-50, HP62, MP39, etc. |
HC | R170, R290, R600a, R1270 |
PFC | PFC-14, PFC-116, PFC-218 |
Others | R152a (Difluoroethane), C2H4F2 |
