STC-200+ Digital Temperature Controller
The STC-200+ is a versatile digital thermostat designed for both refrigeration and heating applications, with built-in alarm and error-handling functions. It is widely used in cold storage, seafood machines, water heaters, and other equipment requiring accurate and simple temperature monitoring.
Key Features
Manual Mode Switching
Easily switch between cooling, heating, and alarm functionsSeparate User & Admin Settings
Advanced configuration with distinct user and administrator parameter accessCompressor Delay & Error Handling
Adjustable compressor delay time
Continues operation based on scheduled parameters during sensor failure
Built-in Alarm Functions
Alarm alerts during sensor error
Temperature deviation detection
Simple Calibration & High Compatibility
Supports temperature calibration

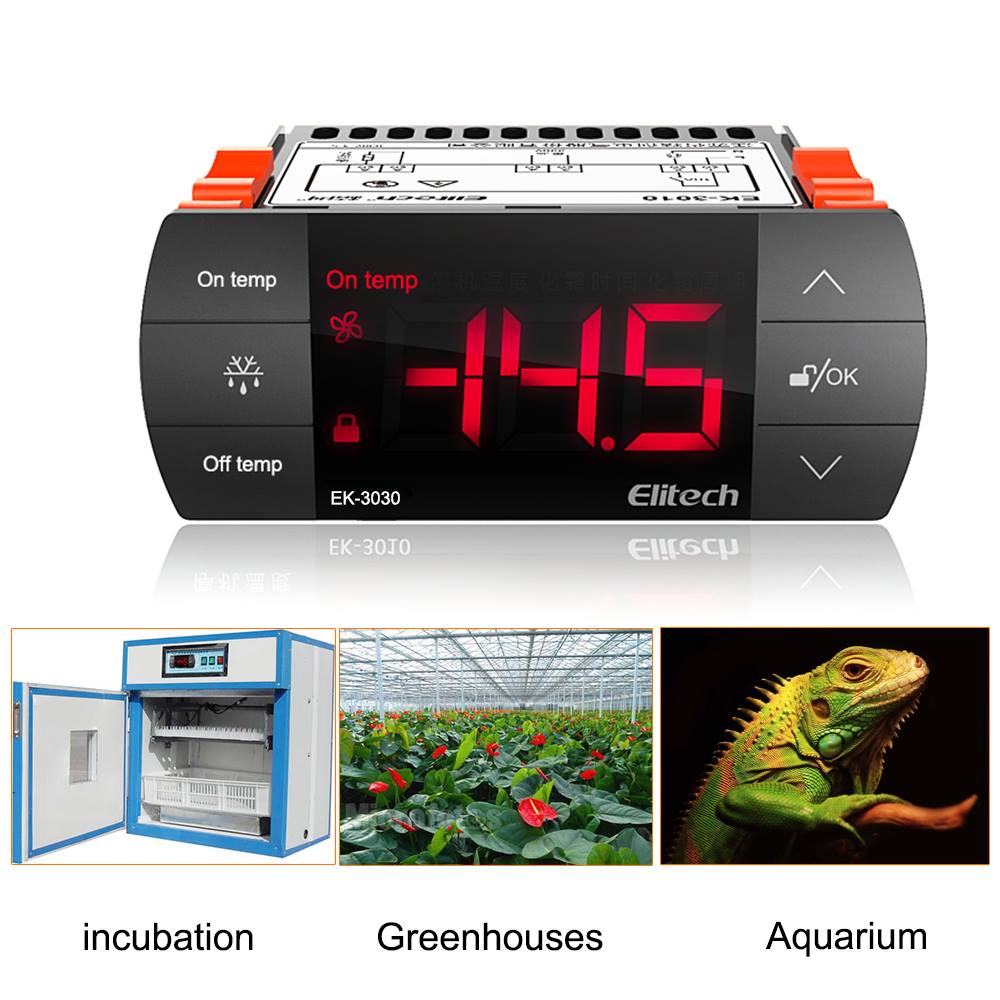

Suitable for a wide range of equipment including deep freezers, refrigeration units, aquatic systems, and water heaters
Cost-Effective All-Purpose Model
Offers excellent performance-to-price ratio
Technical Specifications
Parameter | Details |
|---|---|
Temperature Measurement Range | -40°C to +99°C |
Temperature Control Range | -40°C to +70°C |
Operating Ambient Temperature | -5°C to +60°C |
Storage Temperature | -30°C to +85°C |
Relative Humidity | 20% to 60% RH (non-condensing) |
Power Supply | 220V AC ±10% (12V optional) |
Power Consumption | < 5W |
Resolution | 1°C |
Accuracy | ±1°C |
Relay Output Capacity | 10A / 250V AC or 30V DC |
Dimensions
Parameter | Size |
|---|---|
Product Dimensions | 77.0 × 34.5 × 65.5 mm |
Installation Hole Size | 70.5 × 28.5 mm |
