WJL-6000S Refrigerant Gas Leak Detector

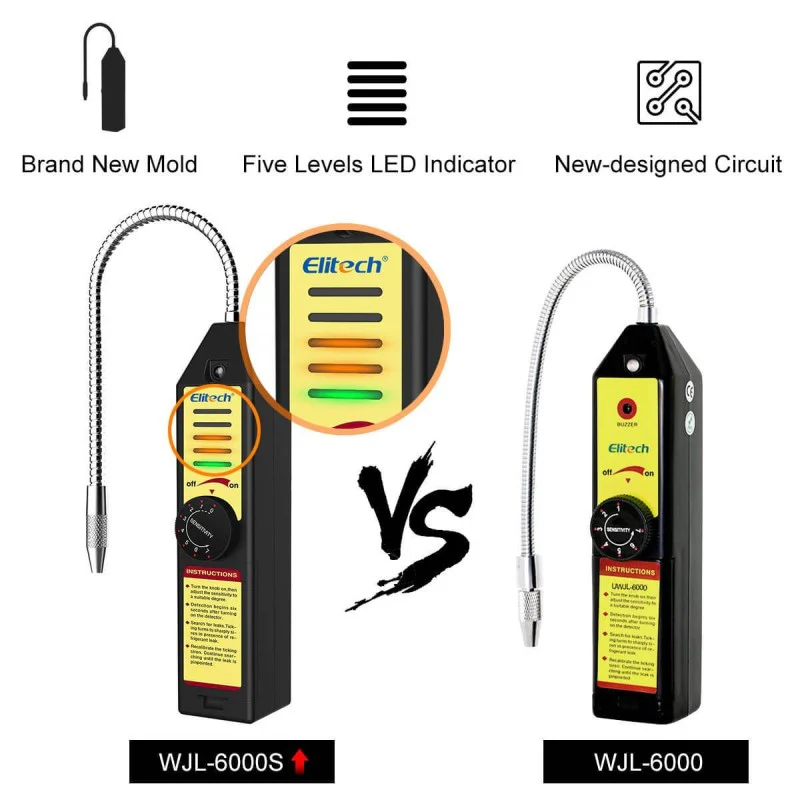

The WJL-6000S is an enhanced version of the widely used WJL-6000 refrigerant leak detector. Engineered for more reliable and faster detection, it incorporates a newly designed high-precision MIC sensor and ultra-low power consumption circuitry to ensure stable performance and extended battery life. With a maximum sensitivity of 5g/year, it effectively detects even the smallest leaks. The intuitive 5-level LED indicator vividly shows the leak magnitude, enhancing diagnostic accuracy.
Key Features
Wide Refrigerant Compatibility
Detects all common halogenated refrigerants including CFCs, HCFCs, HFCs, and refrigerant blends (e.g., R11, R22, R134a, R404A, R410A).High Sensitivity Detection
Capable of identifying leaks as small as 0.21 oz/year (5g/year).7 Adjustable Sensitivity Levels
Easily fine-tune sensitivity to suit different working environments and detection needs.Fast Detection Time
Responds within 5 seconds, allowing for quick inspections.Flexible Probe
Comes with a 20cm (7.87") fixed flexible probe to access hard-to-reach leak points.Battery Power Indicator
Dual-color LED shows power status:Green = Sufficient power
Orange = Low battery
Visual & Audible Alarms
Both LED flash alerts and buzzer sound ensure immediate leak awareness.
Technical Specifications
Parameter | Details |
|---|---|
Operating Temperature | 0°C to 52°C (30°F to 125°F) |
Maximum Sensitivity | 0.21 oz/year (≈ 5g/year) |
Power Supply | 6V DC (4 × AAA alkaline batteries) |
Battery Life | ~50 hours (normal use) |
Response Time | Instantaneous |
Operation Mode | Continuous, no time limit |
Warm-up Time | ~6 seconds |
Reset Time | 2 to 10 seconds |
Probe Length | 20 cm (7.87 inches), fixed |
Dimensions | 35 × 35 × 150 mm (1.37 × 1.37 × 5.90 in) |

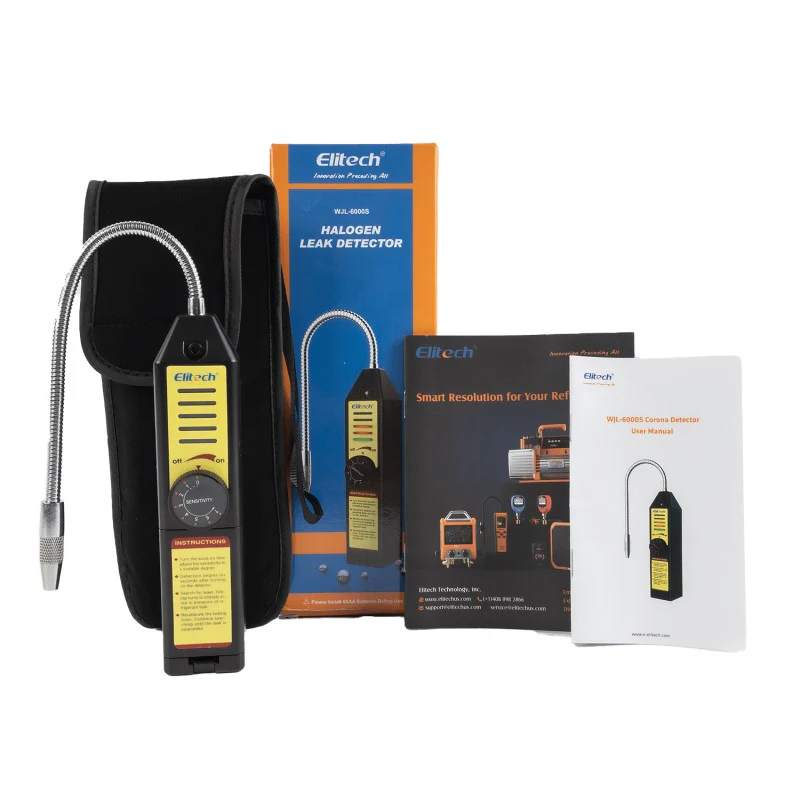

Package Contents | Detector, carrying bag, user manual |
Refrigerant Compatibility
Type | Examples |
|---|---|
CFCs | R11, R12, R13, R502, R503 |
HCFCs | R22, R123, R124, R141b, R142b, R402A, R402B, R408A, R409A |
HFCs | R134a, R410A, R407C, R417A, R404A, R507, R23, R508A, R508B, R152a, R32 |
Blends | AZ-50, HP62, MP39, etc. |
HC | R170, R290, R600a, R1270 |
PFC | PFC-14, PFC-116, PFC-218 |
Others | R152a (Difluoroethane), C2H4F2 |
